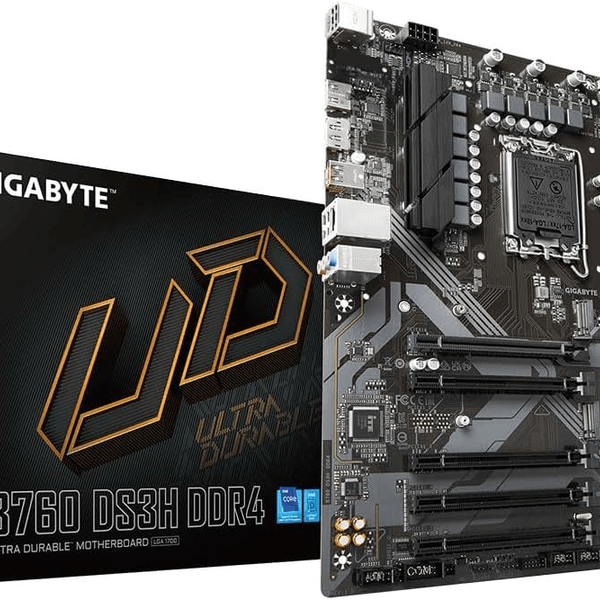

GIGABYTE B760 DS3H DDR4 HDMI TYPE-C DP PCIe 16X v4.0 1700p mATX

Ürün kodu

53801
Marka

GIGABYTE

Görüntüleme sayısı

Dolar Fiyatı

$114,45
KDV Hariç
TL Fiyatı

6.211,20 ₺
KDV Dahil

quantity

Sepete Ekle

Özel Teklif Al

Benzer Ürünler

GIGABYTE H610M-K v2 DDR5 HDMI PCIe 16X v4.0 1700p mATX

Ürün kodu: 53263

Ürün Fiyatı

3.248,06 ₺

Stokta var

GIGABYTE H610M H v2 DDR5 HDMI PCIE 4.0 1700p mATX

Ürün kodu: 48215

Ürün Fiyatı

3.561,47 ₺

Stokta var

ASUS PRIME H610M-K ARGB DDR5 HDMI DP PCIe 16X v4.0 1700p mATX

Ürün kodu: 44970

Ürün Fiyatı

4.159,80 ₺

Stokta var

MSI PRO Z790-P WIFI DDR5 M2 PCIe NVME HDMI PCIe 16X v5.0 1700p ATX

Ürün kodu: 40532

Ürün Fiyatı

10.712,90 ₺

Stokta var

ASUS PRIME H610M-D DDR5 HDMI PCIE 4.0 1700p mATX

Ürün kodu: 49030

Ürün Fiyatı

4.159,80 ₺

Stokta var

ASUS PRIME H610M-K ARGB DDR4 HDMI PCIe 16X v3.0 1700p mATX

Ürün kodu: 47920

Ürün Fiyatı

4.159,80 ₺

Stokta var

ASUS PRIME H610M-R-SI DDR5 HDMI DP PCIE 4.0 1700p mATX

Ürün kodu: 45437

Ürün Fiyatı

4.387,73 ₺

Stokta var

ASUS PRIME B760M-K DDR5 HDMI DP PCIe 16X v4.0 1700p mATX

Ürün kodu: 43241

Ürün Fiyatı

7.122,94 ₺

Stokta var

MSI PRO H610M-E DDR4 M2 PCIe NVME HDMI PCIe 16X v4.0 1700p mATX

Ürün kodu: 10712

Ürün Fiyatı

3.339,23 ₺

Stokta var

Teknik Bilgiler

İşlemci Soket Tipi	1700
Chip Set	Intel B760
Ram Slot Sayısı	4 Adet
Max Ram Desteği	128GB
RAM Tipi	DDR4
Ram Frekans Hızı	4266 MHz,4300 MHz,4400 MHz,4500 MHz,4600 MHz,4700 Mhz,4800 MHz,4933 MHz,4133 MHz,3666 MHz,5000 MHz,2400 MHz,3800 MHz,5133 MHz,3866 MHz,2133 MHz,3600 MHz,2666 MHz,2933 MHz,3000 MHz,3200 MHz,3300 MHz,3333 MHz,5333 MHz,3400 MHz,3466 MHz,4000 MHz
İşlemci Desteği	Intel Core i7,Intel Core i9,Intel Celeron,Intel Pentium,Intel Core i3,Intel Core i5
Anakart Boyutu	Micro ATX
USB 3.2	5 Adet
USB 3.1	Yok
USB 3.0	Yok
USB 2.0	4 Adet
eSata	Yok
Bluetooth	Yok
PCI Express 4.0 x16	1 Adet
PCI Express 3.0 x16	1 Adet
PCI Express 2.0 x16	Yok
PCI Express x16	1 Adet
PCI Express x1	1 Adet
PCI Slot	Yok
M.2 Slotu	1 Adet
Sata 6Gb/s	4 Adet
Sata 3Gb/s	Yok
D-Sub	Var
DVI	Yok
HDMI	Var
DP (Display Port)	Yok
Lan Hızı	1 Gbit/100 Mbit
Lan Çıkış Sayısı	2 Adet
Wireless Bağlantı	Yok
Ses Chip Set	Realtek ALC887
Ses Kanal Sayısı	7.1 Kanal
Görüş Açısı (Yatay / Dikey)	160/140
Satış Garanti Süresi (ay)	24
EAN	4719331850746

Detaylı Bilgiler

Kategori	Özellik
CPU	LGA1700 socket: Support for 12th/13th/14th Gen Intel® Core™, Pentium® Gold, Celeron® L3 cache varies with CPU (Refer "CPU Support List" for details)
Chipset	Intel® B760 Express Chipset
Memory	4 x DDR DIMM sockets, up to 128 GB (32 GB per DIMM) DDR4 5333(O.C.) … 2133 MT/s Dual channel, ECC (non-ECC mode) & non-ECC support XMP support
Onboard Graphics	Intel® HD Graphics 1 x HDMI 4096x2160@60Hz (HDMI2.1, HDCP2.3) 1 x DisplayPort 4096x2304@60Hz (DP1.2, HDCP2.3) Up to 2 displays simultaneously
Audio	Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel *S/PDIF Out support (configurable via software)**
LAN	Realtek® GbE LAN (1G/100M)
Wireless	AMD Wi-Fi 6E RZ608 (BT 5.2), Intel Wi-Fi 6E AX210 & AX211 (BT 5.3), Realtek Wi-Fi 6E RTL8852CE (BT5.3) 2.4/5/6 GHz, 11ax support *(Actual data rate may vary by environment)**
Expansion Slots	CPU: 1 x PCIe x16 (PCIe4.0 x16) Chipset: 4 x PCIe x16 (PCIe3.0 x1)
Storage Interface	CPU: 1 x M.2 (22110/2280 PCIe4.0 x4/x2) Chipset: 1 x M.2 (2280 PCIe4.0 x4/x2) 4 x SATA6Gb/s, RAID 0/1/5/10 support
USB	1 x USB Type-C 3.2 Gen2x2 (back), 1 x USB Type-C 3.2 Gen1 (internal) 1 x USB3.2 Gen2 Type-A (red, back) 2 x USB3.2 Gen1 (internal), 8 x USB2.0/1.1 (back + internal)
Internal I/O Connectors	1 x 24-pin ATX, 1 x 8-pin ATX12V CPU/system fan headers & water pump headers 2 x addressable LED, 2 x RGB LED 2 x M.2 Socket 3, 4 x SATA6Gb/s Front panel/audio/S/PDIF headers, USB headers, TPM header, serial port Q-Flash Plus, reset button/jumper, Clear CMOS
Back Panel Connectors	1 x PS/2, 2 x SMA antenna, 1 x USB Type-C 3.2 Gen2x2 1 x USB3.2 Gen2 Type-A (red), 4 x USB2.0/1.1 1 x HDMI, 1 x DisplayPort, 1 x RJ-45, 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	*Voltage, Temperature, Fan speed, Water flow, Fan fail, Fan speed control (depends on installed fan/pump)**
BIOS	1 x 128 Mbit flash, AMI UEFI BIOS, PnP1.0a, DMI2.7, WfM2.0, SMBIOS2.7, ACPI5.0
Unique Features	*GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus (features may vary by model)**
Bundled Software	Norton® Internet Security (OEM), LAN bandwidth management software
Operating System	Windows 11 64-bit, Windows 10 64-bit
Form Factor	ATX; 30.5cm x 24.4cm
